Anthony J. Hart and Harry M. Lever
PREVALENCE AND DEFINITION
Hypertrophic cardiomyopathy (HCM) is the most common genetic cardiovascular disease.1 The prevalence in the general adult population for people with phenotypic evidence of HCM is estimated at 1 per 500.2 It is the most common etiology for sudden cardiac death (SCD) in young adults.3,4
HCM has traditionally been defined as myocardial hypertrophy of ≥1.5 cm without an identifiable cause (Figs. 22.1 and 22.2). Other etiologies of hypertrophy must be excluded before diagnosing HCM (Table 22.1). While there are multiple synonyms for HCM, including muscular subaortic stenosis (MSS), hypertrophic obstructive cardio-myopathy (HOCM), and idiopathic hypertrophic subaortic stenosis (IHSS), the World Health Organization (WHO) recommends that HCM be used as the term for the disease.

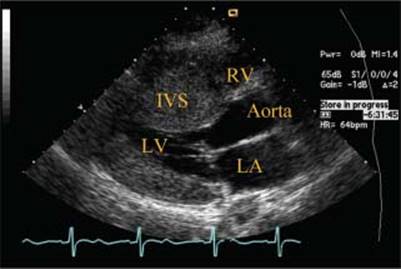

FIGURE 22.1 Transthoracic echocardiogram of HCM in the young—diffuse hypertrophy. Parasternal long-axis view depicts a markedly thickened interventricular septum. The thickening is diffuse, extending from base to beyond the midventricle. LV, left ventricle; RV, right ventricle; LA, left atrium; IVS, interventricular septum.

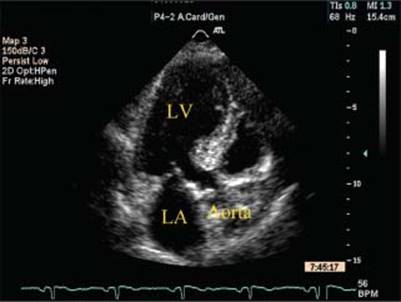

FIGURE 22.2 Transthoracic echocardiogram of HCM in the elderly—proximal septal hypertrophy. Apical three-chamber view depicts focal thickening of the interventricular septum at its base. The midventricle appears to be uninvolved. LV, left ventricle; LA, left atrium.
TABLE
22.1 Alternative Causes of LV Wall Thickening
CLASSIFICATION
HCM can be classified as obstructive or nonobstructive, depending on the presence of a left ventricular outflow tract (LVOT) gradient, either at rest or with provocative maneuvers. Seventy percent of subjects with HCM have LVOT gradients ≥30 mm Hg at rest or with exercise.5 Obstruction is caused by systolic anterior motion (SAM) of the mitral valve leaflet.
Anatomic variants of HCM exist, and these can be categorized based on the location of the hypertrophy (e.g., proximal septal, apical, or diffuse). Apical hypertrophy is also known as Yamaguchi disease (Fig. 22.3). Additionally, distinct forms of HCM appear to exist, depending on age. Younger patients tend to have hypertrophy of the entire septum (see Fig. 22.1), whereas older patients generally have basal septal hypertrophy, known as a sigmoid septum (see Fig. 22.2).6 It is believed that these are two different disease processes. The majority of elderly HCM (diagnosed at >50 years of age) were negative for mutations for HCM, especially when a sigmoid septum was present, whereas younger subjects with HCM were more likely to have mutations for HCM.7

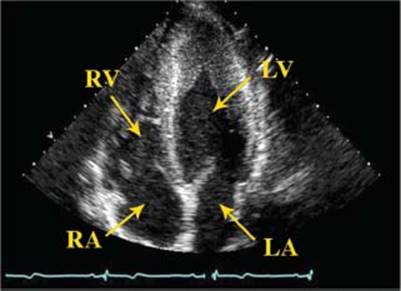

FIGURE 22.3 Transthoracic echocardiogram of apical variant of HCM (Yamaguchi). Apical four-chamber view depicts ventricular thickening of the apex. LV, left ventricle; LA, left atrium; RV, right ventricle; RA, right atrium.
PATHOPHYSIOLOGY AND HISTOLOGY
LVOT obstruction is the pathophysiologic change in obstructive HCM (Figs. 22.4 and 22.5). When SAM occurs, the mitral valve leaflets are pulled or dragged anteriorly toward the ventricular septum, producing LVOT obstruction.8The left ventricle (LV) thus must generate higher pressures to overcome the obstruction and to pump blood systemically. Premature closure of the aortic valve frequently occurs, caused by the decline in pressure distal to the LVOT obstruction.

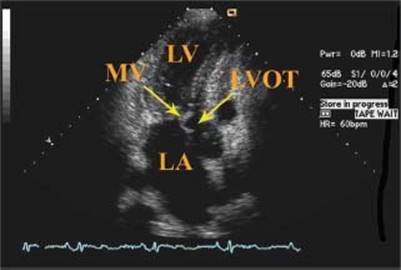

FIGURE 22.4 Transthoracic echocardiogram of SAM of mitral valve. Apical three-chamber view illustrates SAM of the mitral valve, resulting in obstruction of the LVOT. LV, left ventricle; LA, left atrium; MV, mitral valve; LVOT, left ventricular outflow tract.

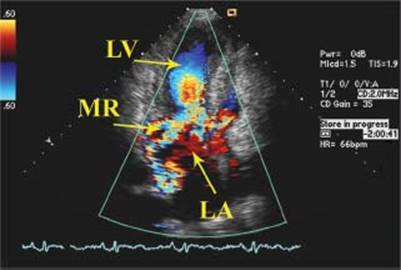

FIGURE 22.5 Transthoracic echocardiogram of mitral regurgitation in HCM. Apical three-chamber view illustrates the classic posterolaterally directed mitral regurgitation jet in HCM. The jet direction occurs secondary to SAM of the mitral valve. LV, left ventricle; LA, left atrium; MR, mitral regurgitation jet.
Dynamic obstruction occurs with HCM, whereas fixed obstruction occurs with aortic stenosis and subvalvular aortic membranes. In dynamic obstruction, the degree of obstruction depends to a larger extent on cardiac contractility and loading conditions. This is contrasted in fixed obstruction, where cardiac contractility and preload have little effect on the degree of obstruction. An underfilled LV results in greater obstruction because there is less separation between the interventricular septum and the mitral valve. As the LV cavity gets smaller and the flow stream is directed against the mitral valve, the SAM of the mitral valve occurs. Augmenting cardiac contractility also increases LVOT obstruction, because a more vigorous contraction is more likely to cause the obstructing components to come into contact. As the mitral leaflet comes closer against the septum, the outflow tract is decreased in size, which further increases the pressure difference. This feedback loop is represented on continuous-wave Doppler imaging as the concave contour (Fig. 22.10).
Histologically, HCM manifests as hypertrophied, disorganized cardiac myocytes present throughout the myocardium. The abnormal cells may take on bizarre shapes, and the connections among cells are often in disarray. Myocardial scarring and growth of the collagen matrix also occur.1 The mechanism of scarring continues to be elucidated but appears to reflect small intramural coronary arteriole dysplasia.9
SYMPTOMS AND CLINICAL COURSE
While the most common symptom of HCM is dyspnea on exertion, the majority of patients with HCM are asymptomatic.10 Importantly, symptoms are not always concordant with severity of LV outflow tract obstruction and may be more closely related to diastolic dysfunction.4
With diastolic dysfunction, the increased chamber thickness in HCM results in increased left ventricular (LV) stiffness, impaired filling, and relaxation. These diastolic abnormalities result in elevated left atrial, LV end-diastolic, and pulmonary pressures. Symptoms may also be caused by mitral regurgitation from SAM of the mitral valve, LVOT obstruction, arrhythmias such as atrial fibrillation, and myocardial ischemia. Patients may also complain of chest pain with exertion, syncope or near syncope, or palpitations. Eating may make symptoms worse because of splanchnic vasodilation and the resulting decrease in systemic vascular resistance.11
The clinical course of HCM is variable. In one community cohort, 23% of subjects with HCM had normal life expectancy.12 Other patients may have premature death. Annual mortality rate from HCM is approximately 1%.1Congestive heart failure and atrial fibrillation may be part of the natural history of HCM. SCD is a frequent and catastrophic initial presentation.13 SCD tends to occur in younger patients and may occur during heavy exertion, light exertion, or even at rest. In an unselected, community-based population with HCM, the estimated incidence of SCD is approximately 0.1% to 0.7% per year.14,15
PHYSICAL EXAMINATION
The physical examination may provide several clues that suggest obstructive HCM. With LVOT obstruction, a harsh systolic murmur exists at the upper sternal border. It is important that this murmur be differentiated from that of mitral regurgitation, which can also be present in HCM secondary to SAM of the mitral valve. Palpation of the carotid pulse aids in distinguishing HCM from aortic stenosis or the presence of a subvalvular aortic membrane. With HCM, little difficulty exists during early systole in ejecting the blood through the LVOT into the aorta; therefore, the carotid upstroke is brisk. As systole progresses, LVOT obstruction occurs, resulting in a collapse in the pulse and then a secondary rise as LV pressure increases to overcome the obstruction. This sign is known as a bisferiens, or spike-and-dome, pulse. In contrast, because the fixed obstruction of aortic stenosis or a subvalvular aortic membrane is present during the entire cardiac cycle, the carotid upstroke in these entities is the classic parvusettarduspulse, a carotid pulse with delayed amplitude and upstroke. Therefore, if any patient carrying a diagnosis of HCM has decreased carotid pulses, this should prompt thoughts of a mistaken diagnosis and further investigation into a fixed obstruction of the LVOT.
Unless congestive heart failure has developed, the lungs are clear and the jugular venous pressure is normal. The point of maximal impulse is often forceful and sustained, and a palpable S4 gallop may be present. Occasionally, a bifid apical impulse may be palpated; the first impulse represents forceful atrial contraction and the second impulse represents sustained ventricular contraction.
The classic auscultatory finding for HCM is a crescendo–decrescendo systolic murmur along the left sternal border that increases with the Valsalva maneuver. The Valsalva maneuver decreases preload, which results in decreased filling of the LV. An underfilled LV results in increased obstruction. The response in HCM to various physiologic and pharmacologic maneuvers is illustrated in Table 22.2.

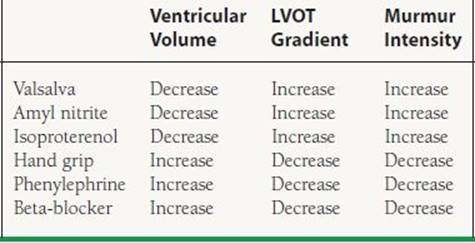

TABLE
22.2 The Response in HCM to Various Physiologic and Pharmacologic Maneuvers
LVOT, left ventricular outflow tract.
During the cardiac examination, it is also imperative to listen carefully for a mitral regurgitation murmur as SAM of the mitral valve frequently causes mitral regurgitation. The remainder of the physical examination is generally unremarkable in HCM.
DIAGNOSTIC TESTING
Labs, Chest X-Ray, and Electrocardiogram
Blood work generally is unremarkable, with the exception of an elevated plasma B-type natriuretic peptide (BNP).16 The chest x-ray is often normal. The electrocardiogram (ECG) may show LV hypertrophy. Occasionally, a pseudoinfarct pattern (with Q waves in the anterolateral leads) may be present on ECG. Figure 22.6 illustrates this pseudoinfarct pattern in a patient with HCM, normal LV systolic function, and no known coronary artery disease. In the apical variant of HCM, the ECG may have deep T-wave inversions in the anteroapical leads (Fig. 22.7). Left atrial abnormality may be present if the patient has had long-standing mitral regurgitation from SAM of the mitral valve. Atrial fibrillation may also be present.
FIGURE 22.6 Pseudoinfarct pattern on ECG in HCM. In HCM, a pseudoinfarct pattern (Q waves in lateral leads) may sometimes be noted. This patient had normal LV systolic function and normal coronary arteries.
FIGURE 22.7 ECG in apical HCM (Yamaguchi). The classic ECG for apical HCM has deep anteroapical T-wave inversions.
Echocardiography
Transthoracic echocardiography (TTE) is currently the primary clinical modality for diagnosing HCM. The septum should be visualized and measured in the parasternal long-axis, apical long-axis, apical four-chamber, and parasternal short-axis views. The major diagnostic criterion for HCM is LV wall thickness of ≥15 mm in the absence of other causes for increased ventricular thickness.4 The LV is nondilated and hyperdynamic. Figures 22.1 and 22.2are TTE images from HCM patients with marked hypertrophy of the inter-ventricular septum. Figure 22.4 illustrates SAM of the mitral valve and resulting LVOT obstruction. During TTE, particular attention should be paid to the septal thickness; location and pattern of hypertrophy; site and magnitude of LVOT obstruction; presence of SAM of the mitral valve; and presence of premature closure of the aortic valve.
Given the frequency of no obstruction at rest, subjects with suspected HCM should undergo provocative testing during TTE with amyl nitrite, Valsalva, or exercise (treadmill or bicycle) to determine whether latent obstruction exists. Amyl nitrite is a vasodilator that decreases preload to the LV, followed by a compensatory increase in heart rate. Exercise results in an increase in contractility and heart rate. The physiologic effects of amyl nitrite and exercise thus result in an increase in LVOT gradient. In our experience, supervised exercise stress tests in patients with HCM are safe, with a major complication rate of 0.04%.17 Dobutamine is generally not recommended for the purposes of provoking LVOT gradients, for gradients provoked by dobutamine are of questionable clinical significance.4
Pulse-wave Doppler should be performed to record LV and left atrial inflows to assess diastolic function. Diastolic abnormalities, which are common in HCM secondary to the thickness and stiffness of the LV, are unfortunately not specific for the diagnosis of HCM.
The mitral valve should be interrogated in multiple views to assess for the presence of mitral regurgitation, which is commonly present when SAM of the mitral valve leaflet is present (see Fig. 22.4). SAM of the mitral valve has a classic appearance in M mode, where the mitral valve leaflets can be seen to approach and often contact the interventricular septum (Fig. 22.8). In HCM, the mitral valve leaflets may be elongated and anterior displacement of the papillary muscles of the mitral valve may also occur.18 With SAM, the mitral regurgitation may range from mild to severe and is posteriorly and laterally directed in the left atrium because of incomplete leaflet apposition (see Fig. 22.5). If the direction of the color jet of mitral regurgitation is central or anterior, then suspicion should be raised for intrinsic abnormalities of the mitral valve.

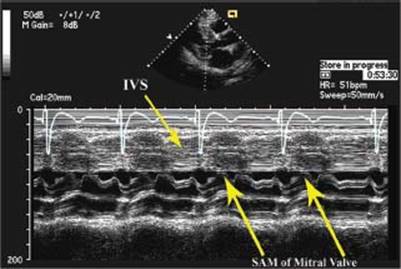

FIGURE 22.8 M-mode of SAM of mitral valve in HCM. With SAM of the mitral valve, the mitral leaflet contacts the interventricular septum during systole in a patient with HCM, as illustrated in this transthoracic M-mode echocardiograph. Normally, the mitral leaflets should be well away from the septum during ventricular systole. IVS, interventricular septum; SAM, systolic anterior motion.
Fixed obstructions such as aortic stenosis, subvalvular aortic membrane, and supravalvular aortic membrane can result in secondary hypertrophy of the interventricular septum, as distinct from the primary hypertrophy of the septum in HCM. In aortic stenosis, the aortic valve is calcified and has restricted mobility, whereas in HCM, the obstruction occurs below the aortic valve, and the aortic valve structure and function are preserved. Subvalvular aortic membranes (Fig. 22.9) and supravalvular aortic membranes may be difficult to visualize on TTE, in which case transesophageal echocardiography may need to be performed to assess for the presence of these structures.

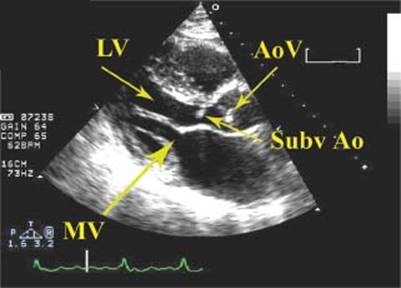

FIGURE 22.9 Subvalvular aortic membrane. Subvalvular aortic membranes must be distinguished from HCM, for both can result in a thickened septum and an LVOT gradient. Although subvalvular aortic membranes may sometimes be difficult to visualize by TTE, in this example a membrane below the aortic valve is clearly seen. LV, left ventricle; MV, mitral valve; AoV, aortic valve; SubvAo, subvalvular aortic membrane.
Continuous-wave Doppler imaging aids in the differentiation of HCM from fixed obstructions. The modified Bernoulli equation [pressure = 4 x (velocity)2] is used with the continuous-wave Doppler tracing through the LVOT to calculate the LVOT gradient. Figure 22.10 illustrates the difference between continuous-wave Doppler signals from HCM and from fixed obstructions. During early systole, blood still flows through the LVOT in HCM; however, with continued contraction of the LV, exacerbated by SAM of the mitral valve, an outflow tract gradient develops. Thus, with HCM, the continuous Doppler signal classically is described as having a late systolic dagger shape, because the obstruction is late peaking as a result of its dynamic nature. In contrast, a fixed obstruction is present during all of systole. Thus, the continuous-wave Doppler signal for fixed obstructions is a smoother contour that peaks earlier.

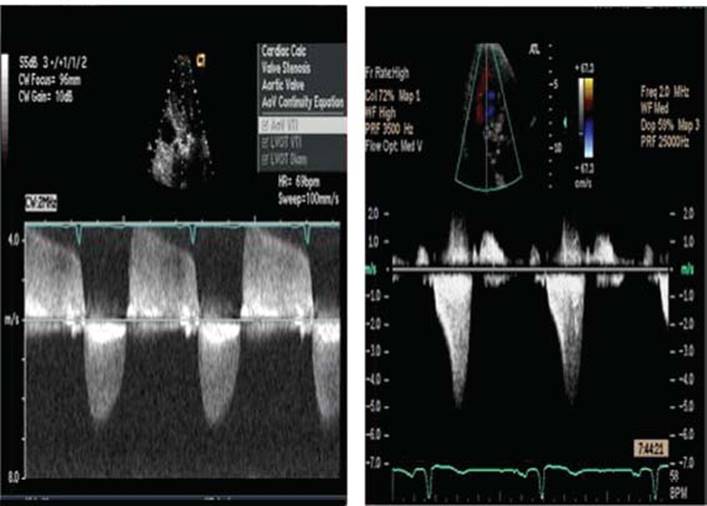

FIGURE 22.10 Continuous-wave Doppler profile comparison of aortic stenosis and HCM. Continuous-wave Doppler profiles from TTE for aortic stenosis (left) and HCM (right) are illustrated. The Doppler profile in aortic stenosis has a smooth, symmetric contour because the obstruction is fixed, whereas the Doppler profile in HCM has a late-peaking, dagger-shaped appearance as a result of the dynamic nature of the obstruction, with its peak in mid-late systole.
The continuous-wave Doppler profile of HCM also must be differentiated from that of mitral regurgitation. The mitral regurgitation jet is generally higher velocity (~6 m/s), whereas the LVOT obstruction jet is often in the 4- to 5-m/s range. The mitral regurgitation velocity tracing also has a smoother, symmetric contour, unlike the dagger-shaped profile of HCM. The mitral regurgitation jet may be late peaking because mitral regurgitation may not occur until SAM has occurred, which occurs partway through systole. However, the mitral regurgitation tracing should extend beyond aortic valve closure, up to the point at which mitral forward flow occurs with diastole. In contrast, the LVOT obstruction signal ends at aortic valve closure.
One promising modality is tissue Doppler, which is sensitive for identifying reduced shortening velocities and may help differentiate between HCM and athlete’s heart, as well as between nonobstructive HCM and hypertensive heart disease with LV hypertrophy.19–21 A transmitral E/septal Ea ratio ≥ 15 has been demonstrated to be a predictive indicator for SCD. Another emerging imaging technique is strain imaging using speckle tracking. Strain imaging continues to evolve while offering complementary information on segmental LV function and its relationship with hypertrophy and fibrosis.22,23
Transthoracic Echocardiogram—Distinguishing HCM from Athlete’s Heart
Because preathletic screening is one means by which the diagnosis of HCM is raised, it is imperative to distinguish HCM from athlete’s heart. Several findings on echocardiography help distinguish HCM from athlete’s heart. In HCM, the septal thickness is usually >15 mm, whereas in an athlete’s heart, septal thickness is <15 mm. Left atrial enlargement often occurs with HCM secondary to long-standing mitral regurgitation from SAM of the mitral valve and/or diastolic dysfunction, whereas in an athlete’s heart, the left atrial size should be normal. The LV should not be dilated in end diastole in HCM, whereas in athletes, it is common for LV end diastolic diameter to be >45 mm. Finally, diastolic dysfunction often exists in HCM as a result of the increased ventricular thickness and stiffness, whereas diastolic function should be normal in athletes. If it is still not certain whether a patient has HCM or athlete’s heart, the athlete should stop training; after 3 to 6 months, ventricular hypertrophy will persist with HCM, whereas with athlete’s heart, hypertrophy should regress.
Cardiac Magnetic Resonance
Cardiac magnetic resonance (CMR) has emerged as a highly useful tool in the diagnosis of HCM. It provides a comprehensive evaluation of myocardial anatomy, including those patients with atypical forms of HCM and those with papillary muscle abnormalities.18,24–26 CMR can also assist with identification of alternative diagnoses such as of Fabry disease and cardiac amyloidosis.
CMR can also provide an accurate assessment of LV function.25,27–29 Additionally, the use of gadolinium-based contrast agents can identify the presence and distribution of myocardial fibrosis.30,31 Several recent studies have examined the relationship between scar burden as assessed in CMR and the incidence of SCD, and it remains an evolving area of interest.32,33
Cardiac Catheterization
While the use of cardiac catheterization has become less relevant in the era of echocardiography and CMR, it is still useful as an adjunctive test in cases where there are discordant data from Doppler echocardiography and the physical exam. Cardiac catheterization may reveal concomitant coronary disease prior to septal myectomy and can also delineate the size and extent of the septal perforators prior to alcohol ablation.
Patients with HCM often have no obstructive coronary artery disease. However, they may have thickened vessels and small-vessel disease from increased collagen deposition in the intima and media.1 The mismatch between myocardial oxygen supply and demand, driven primarily by the increased myocardial mass, may then cause myocardial ischemia. Microvascular dysfunction is present in HCM patients and is associated with worse clinical outcomes.34
The left ventriculogram demonstrates cavity obliteration and a hyperdynamic LV. LVOT gradients can be assessed by positioning a JR4 or multipurpose diagnostic catheter near the LV apex and recording ventricular pressures during slow catheter pullback. A pigtail catheter may not give accurate gradient measurements because there are multiple side holes extending along the distal portion of the catheter, in contrast to the JR4 and multipurpose catheters, which provide true end-hole measurements.
HCM physiology is demonstrated after a premature ventricular contraction (PVC) by the Brockenbrough response (Fig. 22.11). In the beat following a PVC, there is increased filling of the LV from the compensatory pause. The augmented preload results in augmented contractility. In patients with HCM, the increased contractility results in subsequent worsening of the LVOT obstruction. Thus, during the beat after the PVC, there is an increase in LV systolic pressure, a decrease in aortic systolic pressure, and thus an increase in the gradient between LV and aorta. In contrast, in normal subjects, the increased contractility associated with the post-PVC beat results in an increase in both LV systolic and aortic systolic pressure, and there is no gradient between the LV and aorta.
FIGURE 22.11 The Brockenbrough response to a PVC. In normal subjects, a PVC results in a compensatory pause, increased ventricular filling, and subsequent increased cardiac contractility. There is no LV–aortic gradient, either at rest or in the beat post-PVC. The aortic pulse pressure in the beat post-PVC usually increases because of the increased contractility. In contrast, as illustrated in the figure, the Brockenbrough response in the post-PVC beat (fourth beat) suggests HCM. In HCM, the increased contractility occurring with the post-PVC beat results in increased LVOT obstruction and a subsequent increase in the LV-aorta gradient (shaded) as well as decreased aortic pulse pressure during the post-PVC beat.
GENETICS OF HCM
Several hundred mutations involving at least 27 HCM susceptibility genes have thus far been identified.35 The mutations associated with HCM are inherited in an autosomal dominant pattern and primarily involve the myosin, actin, or troponin components of the cardiac sarcomere. The most common mutations that cause HCM involve the β-myosin heavy chain (chromosome 14), myosin-binding protein C (chromosome 11), and cardiac troponin-T (chromosome 1). However, having the HCM genotype does not necessarily imply that subjects will have the phenotypic traits of HCM. Variable penetrance exists, and environmental factors as well as modifier genes affect whether a particular subject will manifest HCM phenotypically.
DNA analysis is the most definitive method for diagnosing HCM.4 With time, genetic testing has become less expensive and readily available.
SCREENING OF FAMILY MEMBERS
Traditionally, it has been recommended that first-degree relatives of HCM patients be screened on a 12- to 18-month basis, beginning at age 12 years, with a 12-lead ECG and TTE. The recommended screening interval reflects the fact that latent HCM may be unmasked by growth spurts and subsequent worsening hypertrophy during adolescence. Evidence of late-onset ventricular hypertrophy occurring well into adulthood has spurred a push toward continuing serial echocardiograms past adolescence and into middle age for HCM relatives.36 It is now recommended that adult relatives of HCM patients undergo screening transthoracic echocardiograms at a minimum of every 5 years.
Genetic testing has also been incorporated into the screening process.35 If the patient has a HCM-causing mutation identified, then first-degree relatives can be screened for the presence of that mutation as well. If a relative is mutation positive, then surveillance should be done in a close manner with an annual clinical and echocardiographic exam. If a relative is mutation negative, then casual or no further routine surveillance can be elected provided the TTE is negative and the relative is asymptomatic.
THERAPY
Treatment options for HCM include pharmacologic therapy, septal myectomy, percutaneous alcohol septal ablation, and heart transplantation. Additionally, pacemaker implantation has been performed, but randomized trials have indicated a substantial placebo effect.
Medical Therapy
Treatment with beta-blockers is considered first-line therapy as they improve symptoms and exercise intolerance.37 By decreasing contractile force, beta-blockers decrease the outflow gradient during exercise and decrease oxygen demand. Beta-blockers also lengthen diastolic filling by slowing the heart rate, thus improving any component of myocardial ischemia. We generally start patients on metoprolol, 50 mg twice a day, or extended-release metoprolol, 50 mg daily. If the patient continues to be symptomatic, the dose of metoprolol/extended-release metoprolol can be increased further by 25-mg increments every few weeks. Alternative beta-blocker choices include propranolol, nadolol, or atenolol.
Second-line therapy includes the calcium channel blocker verapamil and the Class IA antiarrhythmic agent disopyramide. Both nondihydropyridine calcium channel blockers and disopyramide exert a negative inotropic effect and improve ventricular relaxation. The extended-release formulation of verapamil can be started at 240 mg daily and increased by 60 mg every few weeks up to 480 mg daily. Calcium channel blockers have been shown to decrease symptoms in comparison to placebo.37 Verapamil should not be used in patients with severe pulmonary hypertension, because this subgroup may develop excessive vasodilation that worsens LVOT obstruction and cardiac output, resulting in pulmonary edema or even death.38 Diltiazem has been used in HCM patients, but there are few data on its effectiveness.
The extended-release formulation of disopyramide may be started at 150 mg twice a day. Disopyramide improves diastolic function and lowers the LVOT gradient.39 Anticho-linergic side effects may occur with disopyramide. Concomitant therapy with beta-blockers is recommended because disopyramide may cause accelerated A–V nodal conduction, which may be deleterious, especially during episodes of atrial fibrillation.
Certain pharmacologic agents should be avoided or used with caution in HCM. Nondihydropyridine calcium channel blockers, such as nifedipine and amlodipine, should be avoided because they cause peripheral vasodilation, which may result in decreased LV filling and worsening of outflow tract obstruction. Angiotensin-converting enzyme inhibitors and angiotensin-receptor blockers, which also cause peripheral vasodilation, should be avoided. Diuretics, if deemed necessary, should be used cautiously, because subjects with HCM often have stiff ventricles that require high filling pressures. Digoxin is not favored in HCM because its positive inotropic effect may worsen LVOT obstruction. Finally, drugs such as dopamine, dobutamine, and norepinephrine can have deleterious effects in the treatment of acute hypotension due to the positive inotropic effects and should not be used. For cases of refractory hypotension that do not respond to IV fluid administration, phenylephrine, a pure alpha agonist that causes vasoconstriction, can be used.
Septal Myectomy
Septal myectomy is considered the most definitive treatment for patients with medically refractory, symptomatic, obstructive (resting or latent gradient of 50 mm Hg or more) HCM.4 In contrast, subjects with gradients >50 mm Hg but no or only mild symptoms are generally treated medically until more severe symptoms manifest. Young patients with marked LVOT obstruction (gradient ≥ 75 mm Hg) should be considered for septal myectomy despite the lack of significant symptoms. In assessing risk and benefit of septal myectomy, the young age of this subgroup decreases the operative risk. Septal myectomy is not indicated in midcavity obstruction. However, in one study, patients with apical hypertrophy complicated by progressive, drug-refractory diastolic heart failure with severely limiting symptoms experienced improved functional status following apical myectomy.40
Septal myectomy involves resecting part of the proximal septum through an aortotomy so that the outflow tract obstruction is lessened (Fig. 22.12). Sometimes myectomy may be combined with other cardiac surgery such as coronary artery bypass surgery, mitral valve repair, or mitral valve replacement.

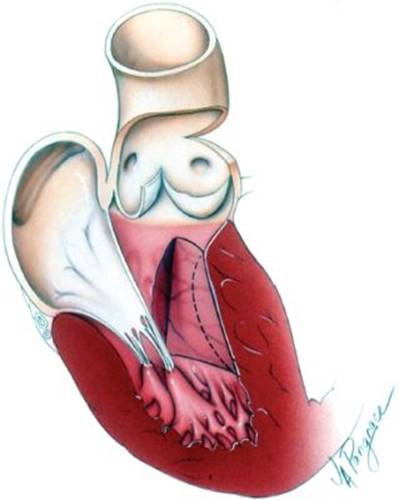

FIGURE 22.12 Septal myectomy. Septal myectomy involves resecting a portion of the proximal septum.
Operative mortality for isolated myectomy is low, at approximately 0% to 4%.41–45 Increasing age and concomitant cardiac procedures may increase the surgical risk. Septal myectomy is associated with high success rates in decreasing LVOT gradients46–48 and in improving symptoms46,48–50 and exercise capacity.47 Symptom improvement occurs from decreasing the LVOT gradient as well as decreasing the severity of any associated mitral regurgitation. Results postmyectomy are durable. Rarely is reoperation needed secondary to recurrence of LVOT obstruction.4
Long-term survival in HCM patients undergoing isolated myectomy is 93% to 96% at 5 years and 83% to 87% at 10 years.44,51 Multivariate predictors of overall mortality include age ≥50 years at time of surgery, concomitant coronary artery bypass graft surgery, female gender, history of preoperative atrial fibrillation, and left atrial diameter of ≥46 mm.45 For patients undergoing a myectomy combined with other cardiac surgery, primarily coronary artery bypass graft surgery or valve surgery, 5-year survival was 80% and 10-year survival was also 80%.51
Retrospective, nonrandomized data suggest that long-term survival for HCM subjects undergoing myectomy does not differ significantly when compared to the age- and sex-matched general population.44Furthermore, myectomy patients had higher survival rates than obstructive HCM patients who did not undergo surgery.44 Thus, myectomy patients appear to fare no worse than the general population. Although randomized comparisons are needed, nonrandomized data suggest that survival may actually be improved in HCM patients who undergo myectomy.44
Preexisting conduction abnormalities influence the likelihood of needing permanent pacemakers postmyectomy. Left bundle branch block is common after surgical myectomy, occurring in 93% of subjects.52Thus, subjects with preexisting right bundle branch block are at high risk for requiring a permanent pacemaker postmyectomy. In subjects with normal conduction systems on ECG, there was a 2% rate of permanent pacemaker implantation postmyectomy, whereas for patients with preexisting conduction abnormalities, there was a 10% incidence of permanent pacemaker implantation.52
Percutaneous Alcohol Septal Ablation
For patients with medically refractory HCM and resting or provocative gradients ≥50 mm Hg who are poor surgical candidates or for those who choose not to undergo open heart surgery, alcohol septal ablation is another option (Fig. 22.13). In the late 1990s, unbridled enthusiasm for alcohol ablation resulted in the fact that by 2000, >3,000 alcohol ablations had been performed for HCM, more than the number of myectomies performed since the introduction of myectomies approximately 40 years ago.53 This optimism has been tempered and presently, alcohol ablation is considered second-line therapy behind myectomy for medically refractory, obstructive HCM.54

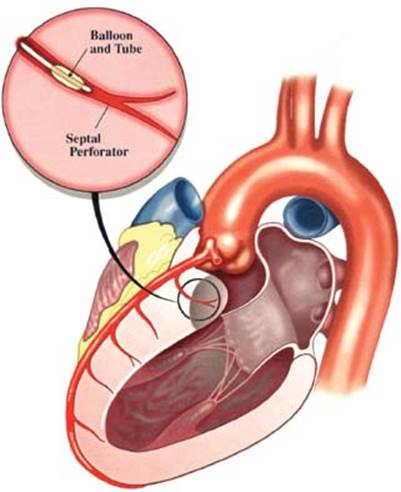

FIGURE 22.13 Alcohol septal ablation. In alcohol septal ablation, a balloon is inflated in the proximal septal perforator and alcohol is injected into the septal artery through the distal port of the balloon. The goal is to create a controlled myocardial infarction of the proximal septum, resulting in shrinkage of the septum and lessening of the LVOT obstruction.
Review of the patient’s cardiac anatomy is critical in selecting subjects for alcohol ablation. In order for alcohol ablation to succeed, LVOT obstruction needs to be secondary to contact of the mitral valve with the proximal septum. If the LVOT obstruction actually occurs in the mid-distal LV cavity, then alcohol ablation will not be of benefit.
Because of the lack of randomized controlled trials and a suitable control population, alcohol ablation has not been shown to improve survival. Alcohol ablation does result in decreased LVOT gradients and an improvement in symptoms,21,55,56 with persistence of benefit at 2 to 3 years.57 Effectiveness of alcohol ablation extends to include the elderly population.58 There is also a decrease in LV filling pressures59and a decrease in septal thickness.56,60 In 3-month follow-up data, we reported a decrease in LVOT gradient from 64 to 28 mm Hg and an improvement in New York Heart Association (NYHA) class from 3.5 to 1.9 after alcohol ablation.56 Predictors of unsatisfactory outcomes after alcohol septal ablation include a residual LVOT gradient after ablation of >25 mm Hg in the cardiac catheterization lab as well as a peak creatinine kinase (CK) of <1,300 U/L.61
At the Cleveland Clinic, most alcohol ablations have been performed on elderly, suboptimal surgical candidates. We generally prefer that the septum be between 1.8 and 2.5 cm, to provide a safety margin; if the septum is too thick, favorable ablation results may be difficult to attain, whereas if it is too thin, the patient is at higher risk for development of a ventricular septal defect. A septum <1.8 cm thick in a patient with the clinical picture of HCM often indicates that mitral valve abnormalities, such as long leaflets, abnormal insertion of the papillary muscles, or anterior displacement of the mitral valve apparatus may be the primary etiology for the LVOT obstruction. Such mitral valve abnormalities contraindicate alcohol septal ablation.
Complications of alcohol ablation include right bundle branch block,52,62,63 complete heart block (requiring a permanent pacemaker), a large anterior wall myocardial infarction, ventricular tachycardia or fibrillation, and pericarditis. The risks of alcohol ablation include a 2% to 4% procedural mortality rate and a 9% to 27% incidence of patients requiring permanent pacemakers.52,57,59,60,63,64
Alcohol ablation, unlike septal myectomy, results in myocardial scar. Thus, a theoretical risk exists that alcohol ablation may increase the risk of SCD, especially in light of the fact that an arrhythmogenic substrate is already present with HCM. One study of 123 HCM patients who already had implantable cardioverter-defibrillators (ICDs) for primary prevention of SCD and were undergoing alcohol ablation found that alcohol ablation was not proarrhythmic.65 This is in contrast to other published studies that have shown that ICD therapy was fourfold more common after alcohol ablation than following the more established surgical myectomy.4 However, SCD has been reported several months after successful alcohol ablation.66
Comparison of Septal Myectomy and Alcohol Ablation
Overall, comparisons between myectomy and alcohol ablation indicate that both are effective in reducing LVOT gradient and improving symptoms, but the procedural complication rate exceeds that of myectomy67 (Table 22.3). A comparison of the two modalities at the Cleveland Clinic suggested slight superiority of myectomy on the basis of larger and more consistent reductions in LVOT gradient.56This nonrandomized study of 51 HCM patients who underwent either myectomy or alcohol ablation found that of the 26 patients who underwent septal myectomy, LVOT gradient was significantly reduced, from 62 mm Hg premyectomy to 7 mm Hg postmyectomy. In the 25 alcohol ablation subjects, LVOT gradient was significantly reduced from 64 mm Hg preablation to 28 mm Hg. New York Heart Association class improved significantly, from 3.3 to 1.5 in the myectomy group and from 3.5 to 1.9 in the alcohol ablation group.56 In this study, five patients underwent myectomy secondary to persistent provocable gradients from alcohol ablation.
TABLE

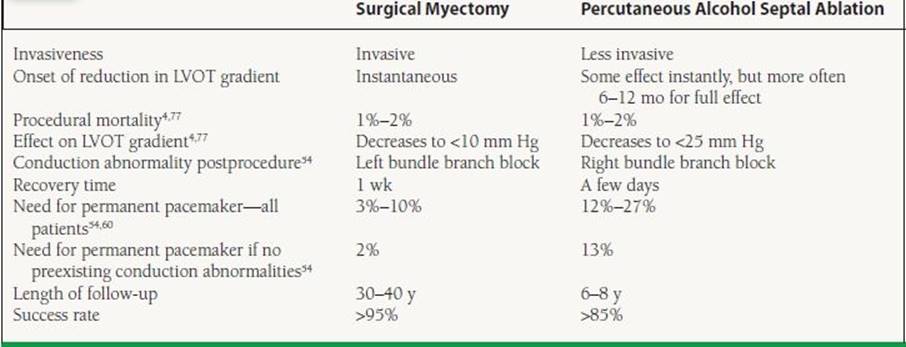

22.3 Comparison of Septal Myectomy and Percutaneous Alcohol Septal Ablation
A recent meta-analysis of septal myectomy versus alcohol ablation concluded that there is a similar mortality rate and functional status between the two procedures, but with increased conduction abnormalities and a higher postintervention LVOT gradient.68
Another nonrandomized cohort study of 44 patients found similar improvements in LVOT gradients and NYHA classification after either myectomy or ablation.69 However, in this study, myectomy was noted to have superior results with respect to exercise parameters, including peak oxygen consumption and peak work rate achieved.
A nonrandomized study compared 41 alcohol ablation patients from Baylor to an age- and gradient-matched cohort of myectomy patients performed at the Mayo Clinic.64 The functional and hemodynamic changes after 1 year were similar in the two groups, although the alcohol ablation group did have a significantly higher incidence of permanent pacing.64
Associated severe coronary artery disease or valvular abnormalities that warrant surgical intervention are factors that further tip the balance toward myectomy over alcohol ablation, for concomitant cardiac surgery can be performed at the time of myectomy. It is crucial to completely assess the degree and etiology of any mitral regurgitation that exists. A subject with HCM and severe mitral regurgitation secondary to SAM could potentially be a candidate for either septal myectomy or alcohol ablation if the primary abnormality is the septal thickness, and it is believed that reducing the septal thickness will alleviate the SAM. In contrast, a subject with HCM and severe mitral regurgitation secondary to intrinsic valvular abnormalities would not be a good candidate for alcohol ablation because in this instance, decreasing the septal thickness would not positively impact the mitral regurgitation.
Permanent Pacemaker Implantation
Pacemaker implantation has been used historically to alleviate the symptoms of HCM, but this procedure has fallen out of favor. It was hypothesized that initiating ventricular contraction at the right ventricular apex and distal septum would alter the sequence of ventricular contraction such that the outflow gradient would be decreased and symptoms improved. However, this was not borne out in double-blind, randomized crossover trials.70,71 Furthermore, in a nonrandomized, concurrent cohort study of 39 patients who underwent either surgical myectomy or received permanent pacemakers, surgical patients demonstrated larger decreases in LVOT gradient (76 to 9 mm Hg versus 77 to 55 mm Hg) and larger improvements in symptoms and exercise duration.72
INFECTIVE ENDOCARDITIS PROPHYLAXIS
While the latest American College of Cardiology (ACC)/American Heart Association (AHA) guidelines reversed the long-standing recommendation of routine antimicrobial prophylaxis for infective endocarditis in patients with HCM, it is notable that this change was not done in response to any new data.73 Given that infective endocarditis is a well-documented and profound complication in patients with HCM, routine antimicrobial prophylaxis for infective endocarditis should be strongly considered.74
SUDDEN CARDIAC DEATH
The most serious complication of HCM is SCD, with an incidence of 0.1% to 0.7% per year.14,15 The first presentation of HCM may be SCD, generally from ventricular arrhythmias. Among subjects with HCM, SCD is more common in adolescents and young adults,75 but it can occur at any age.
Holter monitors have been recommended as a means of risk stratification for primary prevention of SCD. Ventricular arrhythmias are very common, with 88% of HCM patients having PVCs and 31% of HCM patients having nonsustained ventricular tachycardia on 24-hour Holter monitoring.76 Nonsustained ventricular tachycardia had a 95% negative predictive value and 9% positive predictive value for SCD.76Thus, the absence of nonsustained ventricular tachycardia on 24-hour Holter is reassuring, but is nonspecific if present. Electrophysiologic testing has not been shown to be predictive of SCD in HCM, and presently has little role in risk stratification in HCM.4
While survivors of SCD warrant an ICD, primary prevention of SCD in HCM patients is less well defined. An ICD firing rate of 11% per year has been reported in ICDs implanted for secondary prevention and 5% per year when implanted for primary prevention of SCD.77 ACC/AHA/North American Society of Pacing and Electrophysiology 2002 guidelines designate ICD implantation for secondary prevention to be a Class I indication, whereas ICD implantation for primary prevention in HCM is a Class IIb indication.78 Antiarrhythmic therapy for primary prevention generally is not recommended in asymptomatic patients.
Major risk factors for SCD in HCM are shown in Table 22.4 and include LV wall thickness >30 mm10, prolonged or repetitive episodes of nonsustained ventricular tachycardia on Holter monitor79, family history of SCD, no change or a decrease in blood pressure with exercise80, and syncope or near syncope.13,81 An LVOT gradient of ≥30 mm Hg is considered a minor risk factor for SCD.82
TABLE

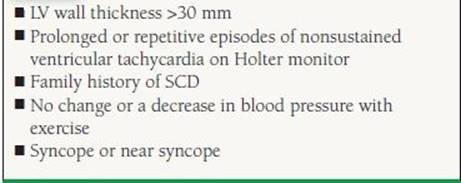

22.4 Risk Factors for SCD
In a multicenter registry study of ICDs implanted between 1986 and 2003 in 506 unrelated patients with HCM, there was a 3.6% rate per year of appropriate ICD therapy for primary prevention of SCD.83 Of the patients that had an ICD placed for primary prevention and experienced appropriate therapy for ventricular tachycardia, 35% had only one risk factor. This suggests that a single risk factor for SCD may be enough to warrant implantation of an ICD in select patients with HCM.
HCM AND ATHLETICS
Patients with HCM should be restricted from competitive athletics or strenuous athletic activity because of the risk for SCD.84,85 Low-level exercise and participation in informal recreational activities, such as bowling and golf, are generally acceptable but should be considered on an individual basis.
ATRIAL FIBRILLATION AND HCM
Atrial fibrillation, which occurs in 28% of HCM subjects, is the most prevalent sustained arrhythmia in HCM.14 HCM subjects with atrial fibrillation have lower long-term survival rates compared to those in sinus rhythm.14,86One study attributed the lower survival to an excess of heart failure-related deaths as opposed to SCD.86
Atrial fibrillation is a significant cause of morbidity in HCM. Strokes occur in 6% of subjects with HCM, nearly all of whom have atrial fibrillation.87 Medical treatment of persistent atrial fibrillation in HCM includes anticoagulation with warfarin and rate control, preferably with beta-blockers.
HCM patients who develop atrial fibrillation may present with acute clinical deterioration. The hypertrophied ventricle is stiff and may require atrial contraction for optimal filling. Losing the atrial contribution to ventricular filling may result in decreased cardiac output and potentially pulmonary edema. The substantial morbidity and increased mortality associated with atrial fibrillation in the setting of HCM justifies an aggressive approach to attempting to maintain sinus rhythm.
Given that HCM patients often tolerate atrial fibrillation poorly, expeditious TEE followed by electrical cardioversion is generally preferred. Amiodarone or sotalol is the preferred therapy for pharmacologic conversion to sinus rhythm or maintenance of sinus rhythm in HCM patients. Digoxin should be avoided in HCM patients, particularly in those with resting or latent obstruction, because of its positive inotropic effect. Atrial fibrillation ablation or the maze procedure may be considered for those with refractory, highly symptomatic atrial fibrillation. In a small number of patients with severe HCM and atrial fibrillation, we have performed combined maze-myectomy procedures.88
HCM AND PREGNANCY
Although pregnant women with HCM are at slightly higher risk for maternal or fetal complications than the average pregnant woman, the absolute morbidity and mortality rate for asymptomatic pregnant women with HCM is low.89,90 However, patients with resting or provocable LVOT obstruction should be referred to a high-risk obstetrician for care in collaboration with a cardiologist. Generally, such women do not need to undergo cesarean section and can deliver vaginally. Adequate fluid intake during pregnancy should be emphasized in pregnant women with HCM to ensure that the LV does not become underfilled. Certain beta-blocking drugs, such as extended-release metoprolol, can be continued during pregnancy but require increased monitoring for fetal bradycardia. While there is a lack of evidence, there is a theoretical concern for sympathetic blockade and loss of venous return from the lower extremities with spinal anesthesia. However, there are case reports of successful use of both regional and general anesthesia in patients with HCM.91
NONOBSTRUCTIVE HCM
Nonobstructive HCM is diagnosed when there is ventricular thickness of >15 mm in the absence of other etiologies, and when no significant LVOT obstruction exists (i.e., LVOT gradient <30 mm Hg with provocation). Approximately 30% of HCM patients do not have LVOT obstruction. Provocative maneuvers used to exclude latent obstruction include Valsalva, amyl nitrite, and exercise. Because some patients have difficulty performing a Valsalva, we generally challenge patients with amyl nitrite when we are trying to exclude latent obstruction.
The treatment of patients with nonobstructive HCM is difficult and less effective than in those with obstructive disease. Pharmacologic therapy is the primary modality of treatment. Beta-blockers may be used to control heart rate and decrease contractility, and calcium channel blockers may improve diastolic function. Alcohol ablation and septal myectomy are not performed in subjects who do not have LVOT obstruction. Over time, HCM may become “burned out” and evolve into a picture similar to a dilated cardiomyopathy, with decreased LV systolic function and a dilated LV. Such a subset comprises approximately 5% of all HCM subjects.4 In patients with symptoms and signs of congestive heart failure, standard heart failure therapy such as beta-blockers, diuretics, ACE inhibitors, and digoxin may be necessary. Heart transplantation is an option for end-stage nonobstructive HCM.
CONCLUSIONS
HCM is the most common genetic cardiovascular disorder and the most common cause of SCD in young adults. A harsh systolic murmur along the left sternal border that increases with Valsalva in conjunction with brisk carotid upstrokes strongly suggests HCM. TTE is presently the preferred modality for diagnosing HCM, although in the near future, HCM may be diagnosed by genetic testing. Beta-blockers are first-line medical therapy for HCM, with verapamil and disopyramide as alternatives. Septal myectomy is first-line therapy for obstructive HCM (generally, LVOT gradient >50 mm Hg) that is refractory to medical therapy, with alcohol septal ablation only in patients deemed poor operative candidates The available therapeutic options for HCM are associated with high success rates in improving symptoms and decreasing LVOT gradients in combination with low mortality rates.
REFERENCES
1. Maron BJ. Hypertrophic cardiomyopathy: a systematic review. JAMA. 2002;287:1308–1320.
2. Maron BJ, Gardin JM, Flack JM, et al. Prevalence of hypertrophic cardiomyopathy in a general population of young adults. Echocardiographic analysis of 4111 subjects in the CARDIA Study. Coronary Artery Risk Development in (Young) Adults. Circulation. 1995;92:785–789.
3. Maron BJ. Sudden death in young athletes. N Engl J Med. 2003;349:1064–1075.
4. Maron BJ, McKenna WJ, Danielson GK, et al. American College of Cardiology/European Society of Cardiology clinical expert consensus document on hypertrophic cardiomyopathy. A report of the American College of Cardiology Foundation Task Force on Clinical Expert Consensus Documents and the European Society of Cardiology Committee for Practice Guidelines. J Am Coll Cardiol. 2003;42:1687–1713.
5. Maron MS, Olivotto I, Zenovich AG, et al. Hypertrophic cardiomyopathy is predominantly a disease of left ventricular outflow tract obstruction. Circulation. 2006;114:2232–2239.
6. Lever HM, Karam RF, Currie PJ, et al. Hypertrophic cardiomyopathy in the elderly. Distinctions from the young based on cardiac shape. Circulation 1989;79:580–589.
7. Binder J, Ommen SR, Gersh BJ, et al. Echocardiography-guided genetic testing in hypertrophic cardiomyopathy: septal morphological features predict the presence of myofilament mutations. Mayo Clin Proc. 2006;81:459–467.
8. Sherrid MV Chu CK, Delia E, et al. An echocardiographic study of the fluid mechanics of obstruction in hypertrophic cardiomyopathy. J Am Coll Cardiol. 1993;22:816–825.
9. Maron BJ, Wolfson JK, Epstein SE, et al. Intramural ("small vessel") coronary artery disease in hypertrophic cardiomyopathy. J Am Coll Cardiol. 1986;8:545–557.
10. Spirito P, Bellone P, Harris KM, et al. Magnitude of left ventricular hypertrophy and risk of sudden death in hypertrophic cardiomyopathy. N Engl J Med. 2000;342:1778–1785.
11. Gilligan DM, Chan WL, Ang EL, et al. Effects of a meal on hemodynamic function at rest and during exercise in patients with hypertrophic cardiomyopathy. J Am Coll Cardiol. 1991;18:429–436.
12. Maron BJ, Casey SA, Hauser RG, et al. Clinical course of hypertrophic cardiomyopathy with survival to advanced age. J Am Coll Cardiol. 2003;42:882–888.
13. Elliott PM, Poloniecki J, Dickie S, et al. Sudden death in hypertrophic cardiomyopathy: identification of high risk patients. J Am Coll Cardiol. 2000;36:2212–2218.
14. Cecchi F, Olivotto I, Montereggi A, et al. Hypertrophic cardiomyopathy in Tuscany: clinical course and outcome in an unselected regional population. J Am Coll Cardiol. 1995;26:1529–1536.
15. Maron BJ, Casey SA, Poliac LC, et al. Clinical course of hypertrophic cardiomyopathy in a regional United States cohort. JAMA. 1999;281:650–655.
16. Maron BJ, Tholakanahalli VN, Zenovich AG, et al. Usefulness of B-type natriuretic peptide assay in the assessment of symptomatic state in hypertrophic cardiomyopathy. Circulation. 2004;109:984–989.
17. Drinko JK, Nash PJ, Lever HM, et al. Safety of stress testing in patients with hypertrophic cardiomyopathy. Am J Cardiol. 2004;93:1443,1444, A12.
18. Kwon DH, Setser RM, Thamilarasan M, et al. Abnormal papillary muscle morphology is independently associated with increased left ventricular outflow tract obstruction in hypertrophic cardiomyopathy. Heart. 2008;94:1295–1301.
19. Kato TS, Noda A, Izawa H, et al. Discrimination of nonobstructive hypertrophic cardiomyopathy from hypertensive left ventricular hypertrophy on the basis of strain rate imaging by tissue Doppler ultrasonography. Circulation. 2004;110:3808–3814.
20. Rajiv C, Vinereanu D, Fraser AG. Tissue Doppler imaging for the evaluation of patients with hypertrophic cardiomyopathy. Curr Opin Cardiol. 2004;19:430–436.
21. King G, Foley JB, Royse CF, et al. Myocardial stiffness and the timing difference between tissue Doppler imaging Ea and peak mitral valve opening can distinguish physiological hypertrophy in athletes from hypertrophic cardiomyopathy. Eur J Echocardiogr. 2006;7:423–429.
22. Popovic ZB, Kwon DH, Mishra M, et al. Association between regional ventricular function and myocardial fibrosis in hypertrophic cardiomyopathy assessed by speckle tracking echocardiography and delayed hyperenhancement magnetic resonance imaging. J Am Soc Echocardiogr. 2008;21:1299–1305.
23. Yang H, Sun JP, Lever HM, et al. Use of strain imaging in detecting segmental dysfunction in patients with hypertrophic cardiomyopathy. J Am Soc Echocardiogr. 2003;16:233–239.
24. Moon JC, Fisher NG, McKenna WJ, et al. Detection of apical hypertrophic cardiomyopathy by cardiovascular magnetic resonance in patients with non-diagnostic echocardiography. Heart. 2004;90:645–649.
25. Rickers C, Wilke NM, Jerosch-Herold M, et al. Utility of cardiac magnetic resonance imaging in the diagnosis of hypertrophic cardiomyopathy. Circulation. 2005;112:855–861.
26. Harrigan CJ, Appelbaum E, Maron BJ, et al. Significance of papillary muscle abnormalities identified by cardiovascular magnetic resonance in hypertrophic cardiomyopathy. Am J Cardiol. 2008;101:668–673.
27. Lima JA, Desai MY. Cardiovascular magnetic resonance imaging: current and emerging applications. J Am Coll Cardiol. 2004;44:1164–1171.
28. Desai MY, Dhillon A, To AC. Cardiac magnetic resonance in hypertrophic cardiomyopathy. Curr Cardiol Rep. 2011;13:67–76.
29. Kwon DH, Desai MY. Cardiac magnetic resonance in hypertrophic cardiomyopathy: current state of the art. Expert Rev Cardiovasc Ther. 2010;8:103–111.
30. Mahrholdt H, Wagner A, Holly TA, et al. Reproducibility of chronic infarct size measurement by contrast-enhanced magnetic resonance imaging. Circulation. 2002;106:2322–2327.
31. Kim RJ, Fieno DS, Parrish TB, et al. Relationship of MRI delayed contrast enhancement to irreversible injury, infarct age, and contractile function. Circulation. 1999;100:1992–2002.
32. Kwon DH, Setser RM, Popovic ZB, et al. Association of myocardial fibrosis, electrocardiography and ventricular tachyarrhythmia in hypertrophic cardiomyopathy: a delayed contrast enhanced MRI study. Int J Cardiovasc Imaging. 2008;24:617–625.
33. Adabag AS, Maron BJ, Appelbaum E, et al. Occurrence and frequency of arrhythmias in hypertrophic cardiomyopathy in relation to delayed enhancement on cardiovascular magnetic resonance. J Am Coll Cardiol. 2008;51:1369–1374.
34. Cecchi F, Olivotto I, Gistri R, et al. Coronary microvascular dysfunction and prognosis in hypertrophic cardiomyopathy. N Engl J Med. 2003;349:1027–1035.
35. Bos JM, Towbin JA, Ackerman MJ. Diagnostic, prognostic, and therapeutic implications of genetic testing for hypertrophic cardiomyopathy. J Am Coll Cardiol. 2009;54:201–211.
36. Maron BJ, Seidman JG, Seidman CE. Proposal for contemporary screening strategies in families with hypertrophic cardiomyopathy. J Am Coll Cardiol. 2004;44:2125–2132.
37. Gilligan DM, Chan WL, Joshi J, et al. A double-blind, placebo-controlled crossover trial of nadolol and verapamil in mild and moderately symptomatic hypertrophic cardiomyopathy. J Am Coll Cardiol. 1993;21:1672–1679.
38. Wigle ED, Rakowski H, Kimball BP, et al. Hypertrophic cardiomyopathy. Clinical spectrum and treatment. Circulation. 1995;92:1680–1692.
39. Matsubara H, Nakatani S, Nagata S, et al. Salutary effect of disopyramide on left ventricular diastolic function in hypertrophic obstructive cardiomyopathy. J Am Coll Cardiol. 1995;26:768–775.
40. Schaff HV Brown ML, Dearani JA, et al. Apical myectomy: a new surgical technique for management of severely symptomatic patients with apical hypertrophic cardiomyopathy. J Thorac Cardiovasc Surg. 2010;139:634–640.
41. Minami K, Woltersdorf H, Kleikamp G, et al. Long-term results after myectomy in 64 patients with hypertrophic obstructive cardiomyopathy (HOCM). Morphological and hemodynamic aspects. J Cardiovasc Surg (Torino). 2000;41:801–806.
42. Smedira NG, Lytle BW Lever HM, et al. Current effectiveness and risks of isolated septal myectomy for hypertrophic obstructive cardiomyopathy. Ann Thorac Surg. 2008;85:127–133.
43. Dearani JA, Ommen SR, Gersh BJ, et al. Surgery insight: Septal myectomy for obstructive hypertrophic cardiomyopathy—the Mayo Clinic experience. Nat Clin Pract Cardiovasc Med. 2007;4:503–512.
44. Ommen SR, Maron BJ, Olivotto I, et al. Long-term effects of surgical septal myectomy on survival in patients with obstructive hypertrophic cardiomyopathy. J Am Coll Cardiol. 2005;46:470–476.
45. Woo A, Williams WG, Choi R, et al. Clinical and echocardiographic determinants of long-term survival after surgical myectomy in obstructive hypertrophic cardiomyopathy. Circulation. 2005;111:2033–2041.
46. ten Berg JM, Suttorp MJ, Knaepen PJ, et al. Hypertrophic obstructive cardiomyopathy. Initial results and longterm follow-up after Morrow septal myectomy. Circulation. 1994;90:1781–1785.
47. Redwood DR, Goldstein RE, Hirshfeld J, et al. Exercise performance after septal myotomy and myectomy in patients with obstructive hypertrophic cardiomyopathy. Am J Cardiol. 1979;44:215–220.
48. Mohr R, Schaff HV, Danielson GK, et al. The outcome of surgical treatment of hypertrophic obstructive cardiomyopathy. Experience over 15 years. J Thorac Cardiovasc Surg. 1989;97:666–674.
49. McCully RB, Nishimura RA, Tajik AJ, et al. Extent of clinical improvement after surgical treatment of hypertrophic obstructive cardiomyopathy. Circulation. 1996;94:467–471.
50. Schulte HD, Borisov K, Gams E, et al. Management of symptomatic hypertrophic obstructive cardiomyopathy—long-term results after surgical therapy. Thorac Cardiovasc Surg 1999;47:213–218.
51. Minami K, Boethig D, Woltersdorf H, et al. Long term follow-up of surgical treatment of hypertrophic obstructive cardiomyopathy (HOCM): the role of concomitant cardiac procedures. Eur J Cardiothorac Surg. 2002;22:206–210.
52. Qin JX, Shiota T, Lever HM, et al. Conduction system abnormalities in patients with obstructive hypertrophic cardiomyopathy following septal reduction interventions. Am J Cardiol. 2004;93:171–175.
53. Maron BJ. Role of alcohol septal ablation in treatment of obstructive hypertrophic cardiomyopathy. Lancet. 2000;355:425–426.
54. Maron BJ, Dearani JA, Ommen SR, et al. The case for surgery in obstructive hypertrophic cardiomyopathy. J Am Coll Cardiol. 2004;44:2044–2053.
55. Knight C, Kurbaan AS, Seggewiss H, et al. Nonsurgical septal reduction for hypertrophic obstructive cardiomyopathy: outcome in the first series of patients. Circulation. 1997;95:2075–2081.
56. Qin JX, Shiota T, Lever HM, et al. Outcome of patients with hypertrophic obstructive cardiomyopathy after percutaneous transluminal septal myocardial ablation and septal myectomy surgery. J Am Coll Cardiol. 2001;38:1994–2000.
57. Faber L, Meissner A, Ziemssen P, et al. Percutaneous transluminal septal myocardial ablation for hypertrophic obstructive cardiomyopathy: long term follow up of the first series of 25 patients. Heart. 2000;83:326–331.
58. Gietzen FH, Leuner CJ, Obergassel L, et al. Transcoronary ablation of septal hypertrophy for hypertrophic obstructive cardiomyopathy: feasibility, clinical benefit, and short term results in elderly patients. Heart. 2004;90:638–644.
59. Seggewiss H, Faber L, Gleichmann U. Percutaneous transluminal septal ablation in hypertrophic obstructive cardiomyopathy. Thorac Cardiovasc Surg. 1999;47:94–100.
60. Gietzen FH, Leuner CJ, Raute-Kreinsen U, et al. Acute and longterm results after transcoronary ablation of septal hypertrophy (TASH). Catheter interventional treatment for hypertrophic obstructive cardiomyopathy. Eur Heart J. 1999;20:1342–1354.
61. Chang SM, Lakkis NM, Franklin J, et al. Predictors of outcome after alcohol septal ablation therapy in patients with hypertrophic obstructive cardiomyopathy. Circulation. 2004;109:824–827.
62. Shamim W, Yousufuddin M, Wang D, et al. Nonsurgical reduction of the interventricular septum in patients with hypertrophic cardiomyopathy. N Engl J Med. 2002;347:1326–1333.
63. Talreja DR, Nishimura RA, Edwards WD, et al. Alcohol septal ablation versus surgical septal myectomy: comparison of effects on atrioventricular conduction tissue. J Am Coll Cardiol. 2004;44:2329–2332.
64. Nagueh SF, Ommen SR, Lakkis NM, et al. Comparison of ethanol septal reduction therapy with surgical myectomy for the treatment of hypertrophic obstructive cardiomyopathy. J Am Coll Cardiol. 2001;38:1701–1706.s
65. Cuoco FA, Spencer WH III, Fernandes VL, et al. Implantable cardioverter-defibrillator therapy for primary prevention of sudden death after alcohol septal ablation of hypertrophic cardiomyopathy. J Am Coll Cardiol. 2008;52:1718–1723.
66. Hirata K, Wake M, Asato H, et al. Sudden death of a case of hypertrophic obstructive cardiomyopathy 19 months after successful percutaneous transluminal septal myocardial ablation. Circ J. 2003;67:559–561.
67. Sorajja P, Valeti U, Nishimura RA, et al. Outcome of alcohol septal ablation for obstructive hypertrophic cardiomyopathy. Circulation. 2008;118:131–139.
68. Agarwal S, Tuzcu EM, Desai MY, et al. Updated meta-analysis of septal alcohol ablation versus myectomy for hypertrophic cardiomyopathy. J Am Coll Cardiol. 2010;55:823–834.
69. Firoozi S, Elliott PM, Sharma S, et al. Septal myotomy-myectomy and transcoronary septal alcohol ablation in hypertrophic obstructive cardiomyopathy. A comparison of clinical, haemodynamic and exercise outcomes. Eur Heart J 2002;23:1617–1624.
70. Nishimura RA, Trusty JM, Hayes DL, et al. Dual-chamber pacing for hypertrophic cardiomyopathy: a randomized, double-blind, crossover trial. J Am Coll Cardiol. 1997;29:435–441.
71. Maron BJ, Nishimura RA, McKenna WJ, et al. Assessment of permanent dual-chamber pacing as a treatment for drug-refractory symptomatic patients with obstructive hypertrophic cardiomyopathy. A randomized, double-blind, crossover study (M-PATHY). Circulation.1999;99:2927–2933.
72. Ommen SR, Nishimura RA, Squires RW, et al. Comparison of dual-chamber pacing versus septal myectomy for the treatment of patients with hypertrophic obstructive cardiomyopathy: a comparison of objective hemodynamic and exercise end points. J Am Coll Cardiol.1999;34:191–196.
73. Bach DS, American College of Cardiology/American Heart Association. Perspectives on the American College of Cardiology/American Heart Association guidelines for the prevention of infective endocarditis. J Am Coll Cardiol. 2009;53:1852–1854.
74. Maron BJ, Lever H. In defense of antimicrobial prophylaxis for prevention of infective endocarditis in patients with hypertrophic cardiomyopathy. J Am Coll Cardiol. 2009;54:2339,40; author reply 2340.
75. Maron BJ, Olivotto I, Spirito P, et al. Epidemiology of hypertrophic cardiomyopathy-related death: revisited in a large non-referral-based patient population. Circulation. 2000;102:858–864.
76. Adabag AS, Casey SA, Kuskowski MA, et al. Spectrum and prognostic significance of arrhythmias on ambulatory Holter electrocardiogram in hypertrophic cardiomyopathy. J Am Coll Cardiol. 2005;45:697–704.
77. Maron BJ, Shen WK, Link MS, et al. Efficacy of implantable cardioverter-defibrillators for the prevention of sudden death in patients with hypertrophic cardiomyopathy. N Engl J Med. 2000;342:365–373.
78. Gregoratos G, Abrams J, Epstein AE, et al. ACC/AHA/NASPE 2002 Guideline Update for Implantation of Cardiac Pacemakers and Antiarrhythmia Devices—summary article: a report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines (ACC/AHA/NASPE Committee to Update the 1998 Pacemaker Guidelines). J Am Coll Cardiol. 2002;40:1703–1719.
79. Monserrat L, Elliott PM, Gimeno JR, et al. Non-sustained ventricular tachycardia in hypertrophic cardiomyopathy: an independent marker of sudden death risk in young patients. J Am Coll Cardiol. 2003;42:873–879.
80. Lim PO, Morris-Thurgood JA, Frenneaux MP. Vascular mechanisms of sudden death in hypertrophic cardiomyopathy, including blood pressure responses to exercise. Cardiol Rev. 2002;10:15–23.
81. McKenna WJ, Behr ER. Hypertrophic cardiomyopathy: management, risk stratification, and prevention of sudden death. Heart. 2002;87:169–176.
82. Maron MS, Olivotto I, Betocchi S, et al. Effect of left ventricular outflow tract obstruction on clinical outcome in hypertrophic cardiomyopathy. N Engl J Med. 2003;348: 295–303.
83. Maron BJ, Spirito P, Shen WK, et al. Implantable cardioverter-defibrillators and prevention of sudden cardiac death in hypertrophic cardiomyopathy. JAMA. 2007;298:405–412.
84. Maron BJ, Shirani J, Poliac LC, et al. Sudden death in young competitive athletes. Clinical, demographic, and pathological profiles. JAMA. 1996;276:199–204.
85. Maron BJ, Isner JM, McKenna WJ. 26th Bethesda conference: recommendations for determining eligibility for competition in athletes with cardiovascular abnormalities. Task Force 3: hypertrophic cardiomyopathy, myocarditis and other myopericardial diseases and mitral valve prolapse. J Am Coll Cardiol. 1994;24:880–885.
86. Olivotto I, Cecchi F, Casey SA, et al. Impact of atrial fibrillation on the clinical course of hypertrophic cardiomyopathy. Circulation. 2001;104:2517–2524.
87. Maron BJ, Olivotto I, Bellone P, et al. Clinical profile of stroke in 900 patients with hypertrophic cardiomyopathy. J Am Coll Cardiol. 2002;39:301–307.
88. Chen MS, McCarthy PM, Lever HM, et al. Effectiveness of atrial fibrillation surgery in patients with hypertrophic cardiomyopathy. Am J Cardiol. 2004;93:373–375.
89. Thaman R, Varnava A, Hamid MS, et al. Pregnancy related complications in women with hypertrophic cardiomyopathy. Heart. 2003;89:752–756.
90. Autore C, Conte MR, Piccininno M, et al. Risk associated with pregnancy in hypertrophic cardiomyopathy. J Am Coll Cardiol. 2002;40:1864–1869.
91. Poliac LC, Barron ME, Maron BJ. Hypertrophic cardiomyopathy. Anesthesiology. 2006;104:183–192.
QUESTIONS AND ANSWERS
Questions
1. All of the following increase the gradient in hypertrophic cardiomyopathy (HCM) except:
a. Valsalva maneuver
b. Squatting
c. Amyl nitrite
d. Isoproterenol
2. Which of the following is an appropriate screening protocol for family members of patients with HCM?
a. Serial ECG and echocardiogram every 5 years for a 14-year-old child of an HCM patient.
b. Serial ECG and echocardiogram on a first-degree adult relative every 10 years of an HCM patient.
c. Serial ECG and echocardiogram on a gene-negative first-degree relative of a patient who is gene positive for a β-myosin heavy-chain mutation every 5 years.
d. Cessation of screening for a myosin-binding protein C mutation positive first-degree relative of a patient with a myosin-binding protein C mutation positive patient.
e. Serial ECG and echocardiogram every 18 months for a 17-year-old child of an HCM patient.
3. All of the following are true of the Brockenbrough response except:
a. There is increased filling of the left ventricle (LV) with the compensatory pause.
b. The premature beat causes a decrease in contractility in HCM but not in normal individuals.
c. There is an increase in ventricular pressure in both normal individuals and in patients with HCM.
d. There is a decrease in aortic pressure in HCM.
e. There is an increase in aortic pressure in normal individuals.
4. Echocardiography is the primary clinical modality for diagnosing HCM. Which of the following findings is (are) commonly seen in HCM?
a. A septum >15 mm
b. Preclosure of the aortic valve
c. Anterior displacement of the papillary muscles
d. Elongated mitral leaflets
e. All of the choices
5. All of the following drugs are useful in the treatment of HCM except:
a. Metoprolol
b. Disopyramide
c. Enalapril
d. Diltiazem
e. Phenylephrine
6. Which of the following is a risk factor for sudden death in HCM?
a. Septal thickness >30 mm
b. Prolonged or repetitive episodes of nonsustained ventricular tachycardia
c. Family history of sudden death
d. Syncope or near syncope
e. No change or a decrease in blood pressure with exercise
f. All of the choices
7. All of the following are appropriate medications to treat patients with HCM and atrial fibrillation except:
a. Sotalol
b. Metoprolol
c. Amiodarone
d. Digoxin
e. Verapamil
Answers
1. Answer B: The Valsalva maneuver decreases venous return and thus decreases ventricular volume, thus accentuating the systolic anterior motion (SAM) and thus increasing the gradient. Amyl nitrite causes peripheral vasodilation and tachycardia. Both of these factors cause the LV to decrease in size and thus increase the gradient. Isoproterenol increases the contractility and thus decreases ventricular volume, which increases the gradient. Standing decreases venous return and decreases ventricular volume. Squatting increases the vascular resistance and venous return, thus increasing ventricular volume and reducing the SAM, which reduces the gradient.
2. Answer E: First-degree relatives of a mutation-positive HCM patient who are mutation negative do not need routine screening. If a mutation is identified in the index case and the first-degree relative is also gene positive, then they should have routine screening ECG and echocardiogram. If no gene mutation is identified in the index patient, then all first-degree relatives should be screened. Screening should occur every 12 to 18 months while in adolescence. This frequent cycle should be followed into early adulthood at which point screening can be scaled back to a minimum of every 5 years. Exceptions to the rule include relatives who do not have the gene mutation that has been identified in the index HCM patient in which case screening can be stopped.
3. Answer B: The Brockenbrough maneuver causes the contractility to increase in both normal individuals and in patients with HCM. All of the other statements are true.
4. Answer E: The definition for the diagnosis of HCM is that the septum must be 15 mm or greater in the absence of any disease known to cause hypertrophy. Preclosure of the aortic valve is commonly seen on M-mode echo of the aortic valve in the presence of left ventricular outflow tract (LVOT) obstruction. Anterior displacement of the papillary muscles is frequently seen in HCM and contributes to the development of outflow tract obstruction. Elongated mitral leaflets have been recognized for some time in HCM but are now more easily seen with better instrumentation.
5. Answer C: Enalapril is an angiotensin-converting enzyme inhibitor, and it can worsen obstruction by decreasing both preload and afterload. Metoprolol is a beta-blocker and thus, by slowing the heart rate, may allow for prolonging diastolic filling and lessen the provocable outflow tract gradient. It is also a negative inotrope. It is somewhat less helpful if there is resting obstruction. Disopyramide has a negative inotropic effect on the LV and thus frequently diminishes LVOT obstruction. Diltiazem is a calcium channel blocker that has some negative inotropic effect and may lessen LVOT obstruction. In addition, it improves diastolic filling. Phenylephrine may be life saving in the treatment of hypotension-associated severe LVOT obstruction. It is a pure vascular constrictor and does not increase the contractility of the heart.
6. Answer F: Although all of these factors have been shown to have a high negative predictive accuracy, the positive predictive accuracy is low.
7 Answer D: Digoxin should be avoided as it increases contractility, which in turn can increase obstruction. All other medications are reasonable as part of a rhythm- or a rate-controlling strategy.
